Janatics Swivel Fittings are provided with male thread arrangements along with provision for inserting tubes, enabling flexible and rotational pneumatic connections. The connector has a hexagonal-shaped metal housing and is designed to allow smooth movement and rotation of connected lines without twisting the tubing. This helps reduce stress on the tube and ensures reliable performance in dynamic pneumatic applications. The tube can be easily inserted, and when the collet cap is pressed, the tube gets released quickly for convenient operation

Nylon (PA6), Soft Nylon, Polyethylene, and Polyurethane tubes with various colors can be used. Applicable outer tube diameters are available in (mm): 4, 6, 8, 10, 12, 14, and 16 sizes. In this design we have the following type.

1) WP2 Series - With metal Housing and plastic collet cap
This fitting is available in various models such as :

• Single Swivel (Internal Hexagon Socket)

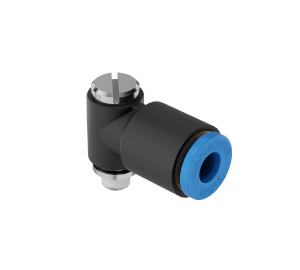

• Single Swivel (Slotted Head)

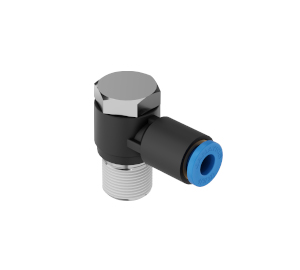

• Single Swivel (Hexagon Head)

• Double Swivel

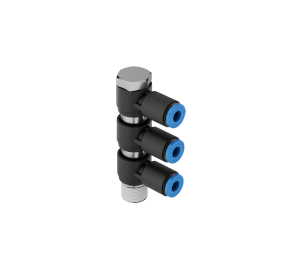

• Triple Swivel.
