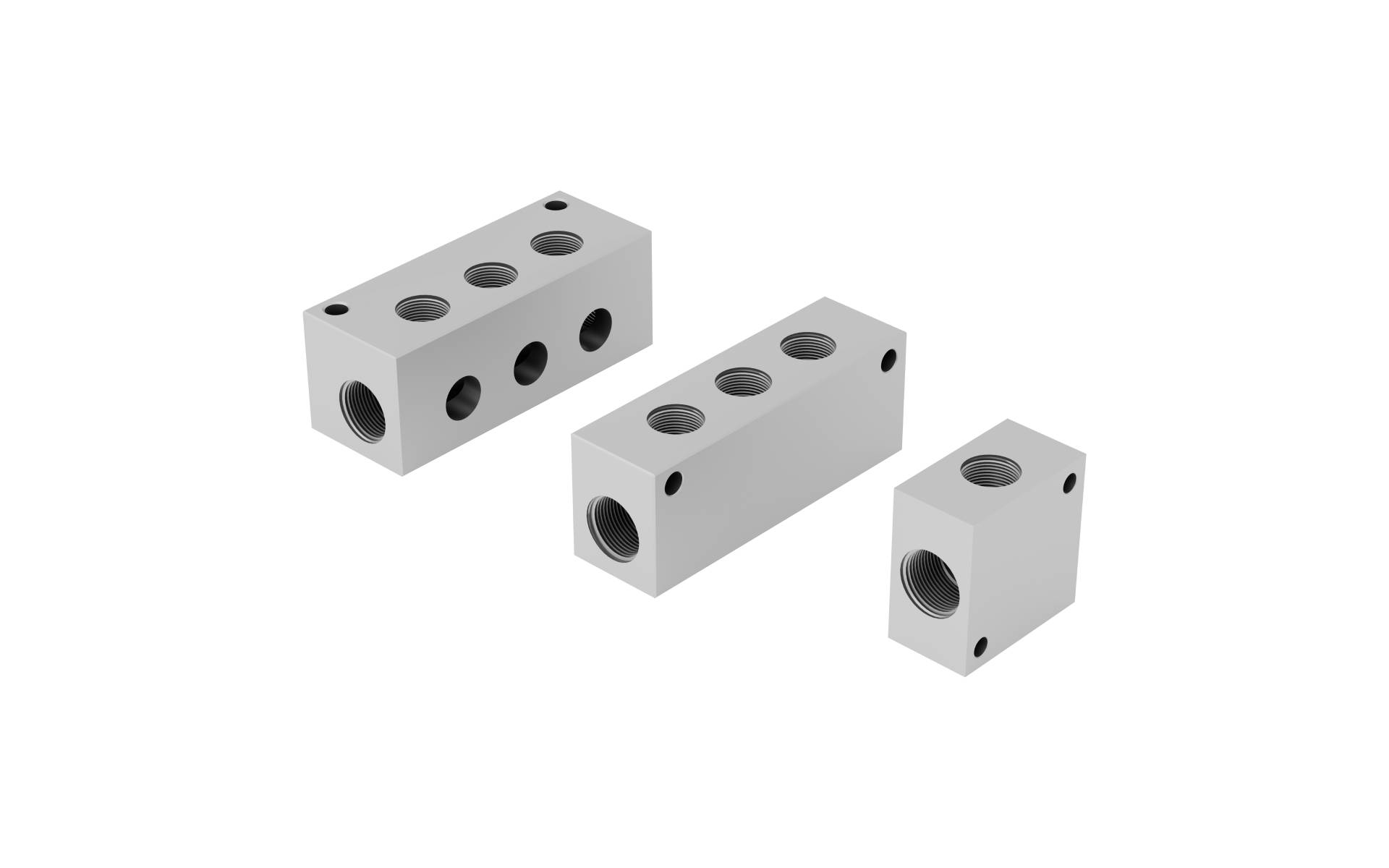

Janatics Junction box is a Metal block housing, having one inlet and one or more outlet Ports for the circuit requirement. Instead of using many fittings, this enables space saving and organised air connections for the pneumatic elements. This Junction box enables easy maintenance and servicing. For compact space saving air connections junction box are used. The junction box is manufactured with an anodized aluminium body. Mounting holes are provided for easy installation and secure positioning. The compact design helps in efficient air distribution and improves system arrangement while minimizing installation complexity. It is suitable for use in automotive, engineering, fabrication, machine tools, and general industrial pneumatic applications.

The Junction Box is available in the following types:

• WJ01 Series – Ports on all 4 sides Available Sizes: M5, G1/8, G1/4, G3/8, G1/2

• WJ02 Series – through hole with port on both sides with 3 outlets. Available Sizes: M5, G1/8, G1/4, G3/8, G1/2

• WJ03 Series - through hole with port on both sides with 6 outlets on 2 sides 3 per side. Available Sizes: G1/8, G1/4, G3/8, G1/2

Plug: Any unused port can be plugged using this metal plug in the pneumatic circuit to avoid air leakage. Can be used in pneumatic elements.
Available Sizes: M5, G1/8, G1/4, G3/8, G1/2 (with sealing washer)
