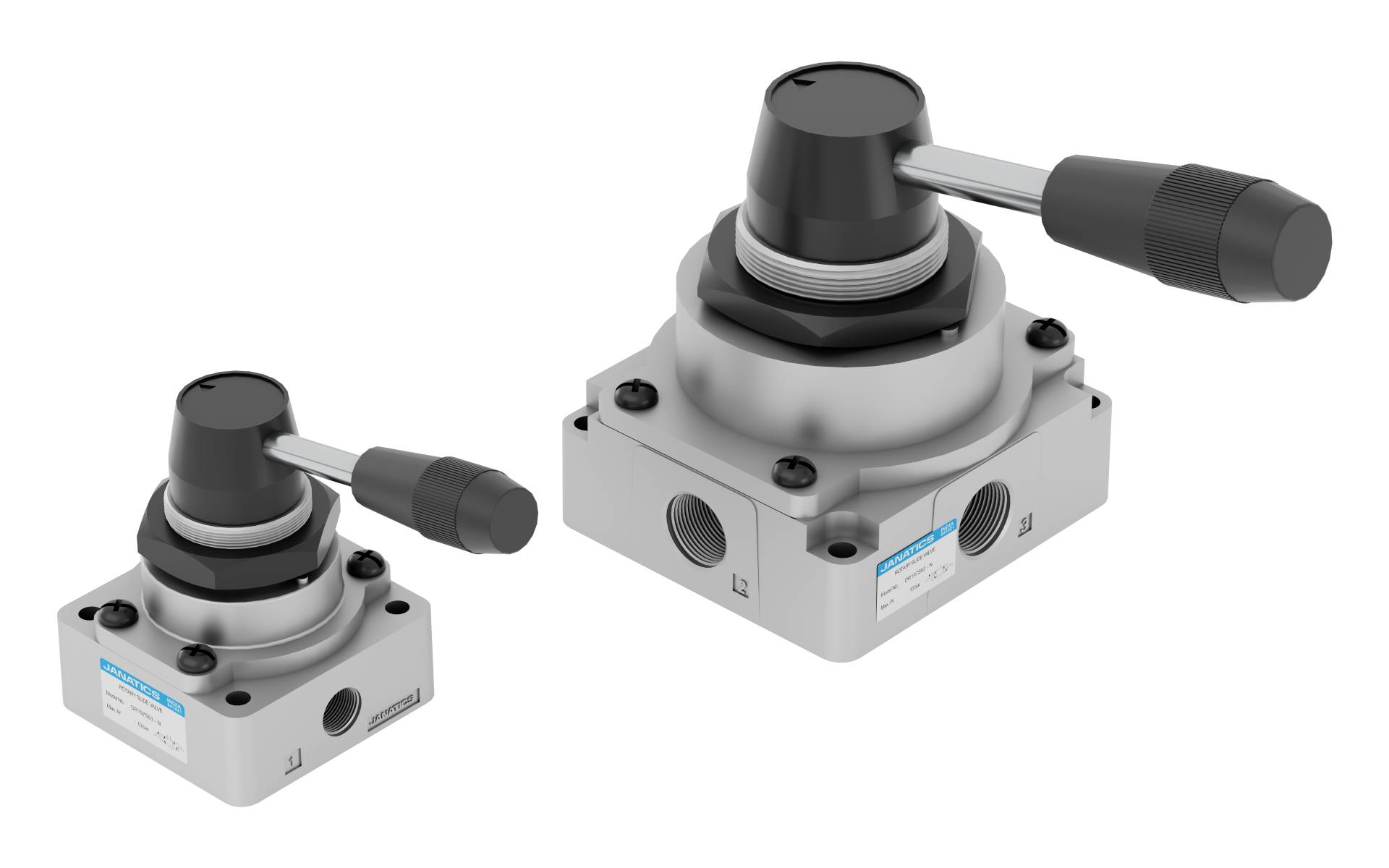

Janatics Rotary slide valve

Janatics Rotary slide valve is a Rotary type actuation valve. This type of valves have 4 ports radially. By operating the hand lever in radial path the ports are connected for the flow requirement. Available Models are,

• DR1

• DR2

In DR1 we have 4 ports and 3 position valves 2 types.

• 4/3-way hand lever operated - Mid position blocked.

• 4/3-way hand lever operated - Mid position Exhausted.

These valves have detent to hold the hand lever in the required position. The hand lever can be mounted “inlet port side” or “Exhaust port side” according to the requirements.
Available sizes: G1/4, G1/2
In DR2 we have 4 ports and 3 position valve.

• 4/3-way hand lever operated - Mid position blocked (Without port overlap)

These valves have detent to hold the hand lever in the required position. The hand lever can be mounted inlet port side or outlet port side according to the requirements.
Available sizes : G1/4
The Product can be mounted on the machine or base with the holes provided in the housing. For Panel mounting thread and lock nut provided.
