Janatics Solenoid Valve Coil Connectors

Janatics Solenoid Valve Coil Connectors are an electrical plug or socket that connects power to the coil of a solenoid valve. This allows a valve to be energized by an electrical signal. These connectors provide a secure weather-resistant like IP65 or higher. This is a modular way to connect the solenoid coils without hard wiring directly. The most common standardized type follows the DIN 43650.

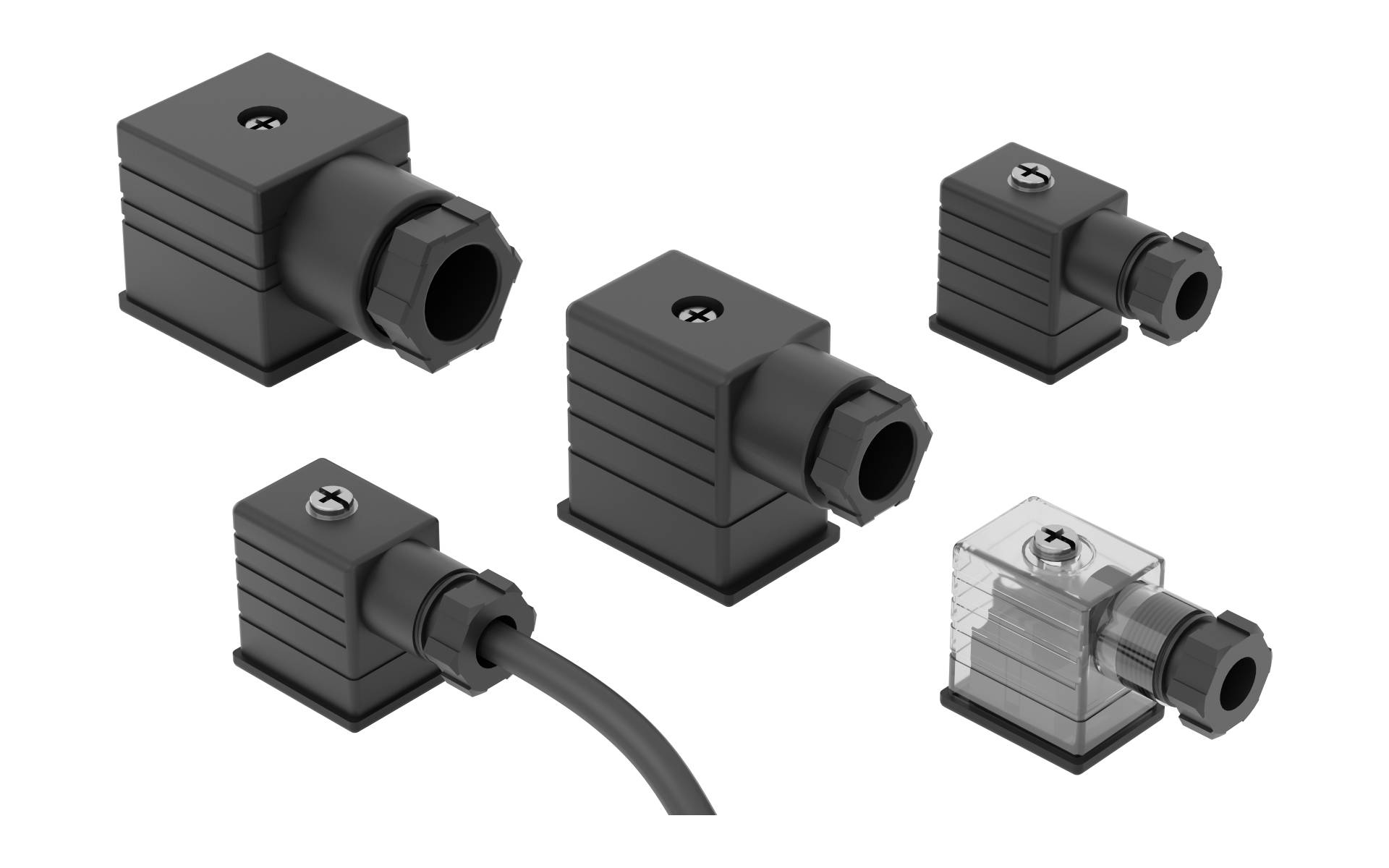

Types of Solenoid Coil Connectors:

• Connectors without LED

These types of connectors are in Black colour with PG9 or PG7 cable entry and with moulded cable with 2 metre length.

• Connectors with LED – Transparent Housing

Transparent Housing with Bipolar LED Indicator confirming supply Voltage
Transparent Housing with Bipolar LED Indicator confirming supply Voltage plus varistor to give over voltage protection to the source and load

These types of connectors are with PG9 or PG7 cable entry and with moulded cable with 2 metre length.
These connectors are available in various sizes suitable for 32mm, 22mm &
17mm coil width.
KA - suitable for 32mm coil width (cable OD 6 to 8mm PG9)
KB - suitable for 22mm coil width (cable OD 6 to 8mm PG9)
KC - suitable for 17mm coil width (cable OD 4 to 6mm PG7)
The recommended voltage is specified for selecting the connectors 220V AC,
24V AC, 24VDC.
