Janatics ISO Sub base valve Series DS4

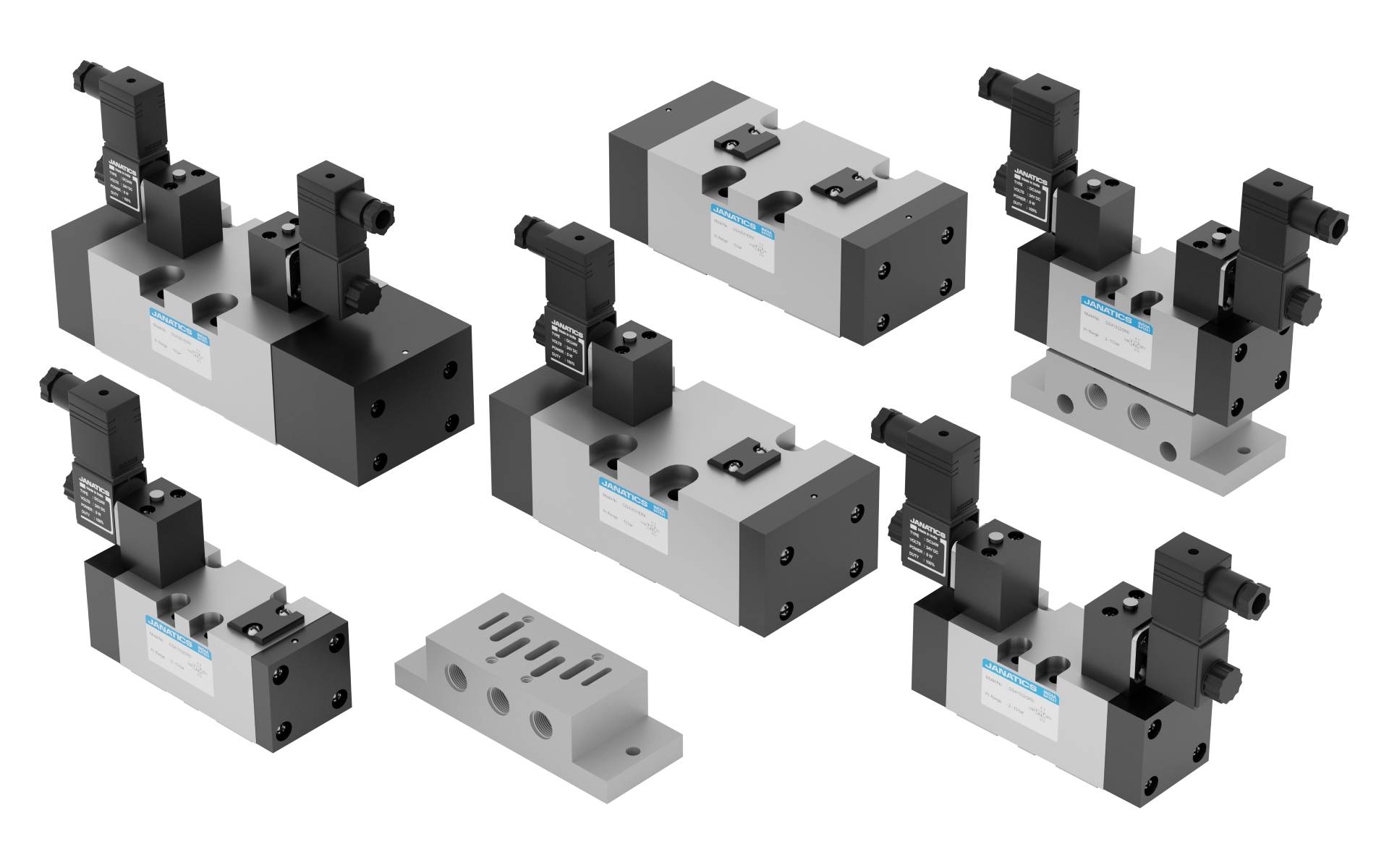

Janatics ISO Sub base valve Series DS4, the main valve with spool design. Solenoid pilot operated and external air pilot operated models are available. These valves have sub base suitable for ISO size 1 and size 3. ISO Sub bases confirming to ISO 5599-1 provide a standard mounting interface for pneumatic valves, allowing compatibility across multiple brands and simplified maintenance. They can be used in modular assemblies as they have standardized port patterns. For high flow requirements these valves are used. For Operating the solenoid valve Push Type Manual Operator provided.

ISO Size 1:

• 5/2 way- Single solenoid(Internal) Pilot operated Valve with Spring return

• 5/2 way- Double solenoid(Internal) Pilot operated Valve

The ISO Sub base for ISO Size 1 valve. M01161

ISO Size 3:

• 5/2 way- Single solenoid (Internal) Pilot operated Valve with Spring return

• 5/2 way- Double solenoid (Internal) Pilot operated Valve

• 5/3 way- Solenoid (Internal) Pilot operated Valve – Blocked type

• 5/2 way- Single External Pilot Operated Valve with Spring return

• 5/2 way- Double External Pilot Operated Valve

The ISO Sub base for ISO Size 3 valve. M01363 All the solenoid operated valves have coil with 22mm width.

• Standard Coil - Recommended Coil Voltages AC : 24, 48, 110, 220V.

DC : 12, 24, 48, 110V.
