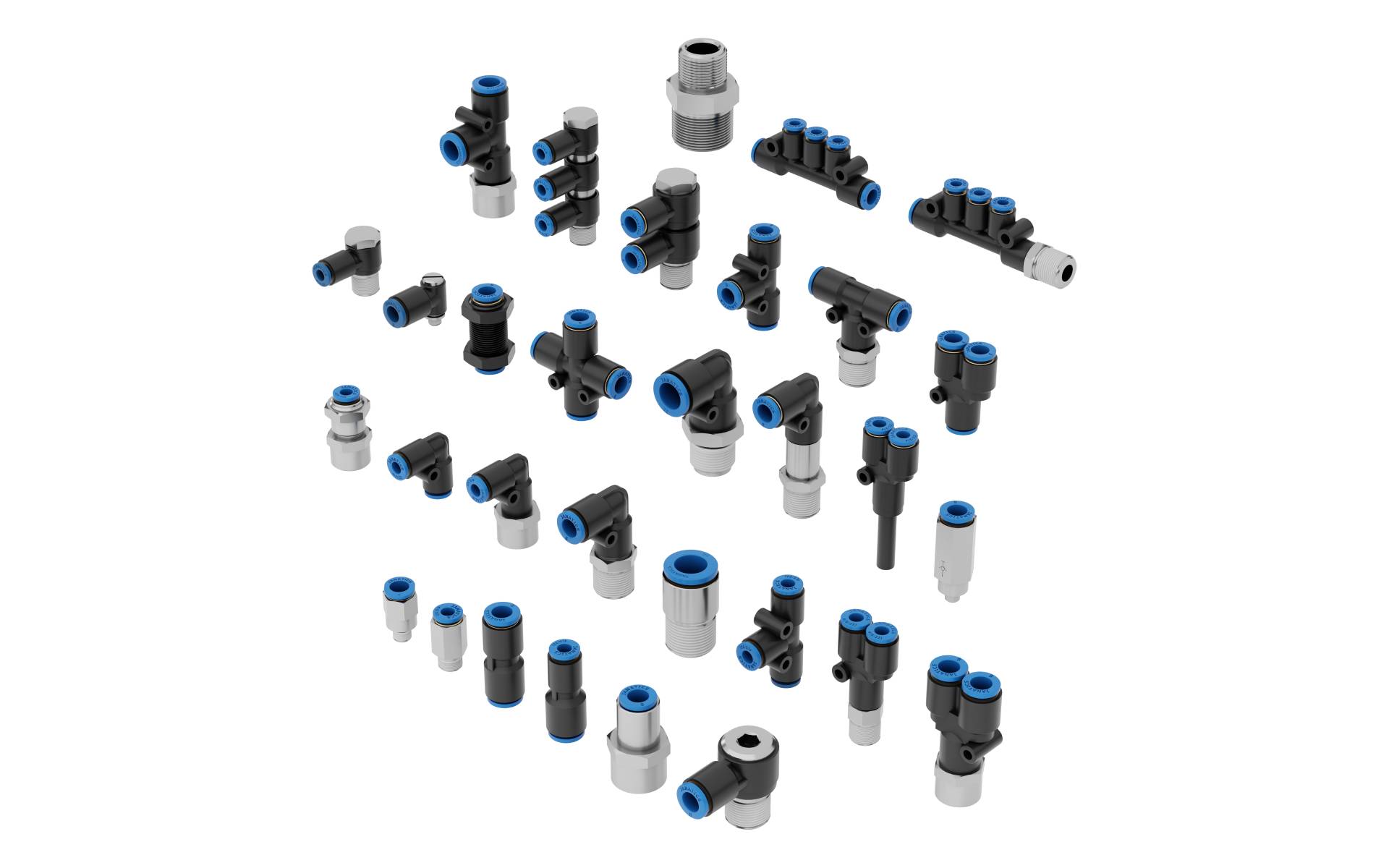

Janatics Elbow Connectors are in L shape, provided with male and female threads at one end and a provision for inserting the tube at the other end. The metal threaded part is connected with plastic housing. The connector is designed for angular (90°) line connections where directional changes in pneumatic tubing are required. The tube can be inserted easily, and by pressing the collet cap, the tube can be quickly released. Nylon (PA6), Soft Nylon, Polyethylene, and Polyurethane tubes in various colors can be used with these connectors.
Applicable outer tube diameters are available in (mm): 4, 6, 8, 10, 12, 14, and 16. In this design we have the following types.

1) WP2 Series - With plastic Housing and plastic collet cap

• Male Elbow (M5 (metric), R1/8, R1/4, R3/8, R1/2, R3/4, R1)

• Female Elbow (G1/8, G1/4, G1/2)

• Extended Male Elbow (R1/8, R1/4, R3/8, R1/2)

2) WP3 (Mini) Series - With metal Housing and plastic collet cap

• Male Elbow (Mini) (Metric- M5, M6, M7, M12), (R1/8)

3) WM2 Series - With brass body with brass collet cap - Nickel plated

• Male Elbow
  G1/4
  R1/4, R3/8, R1/2

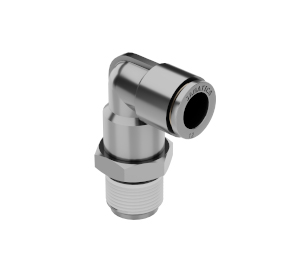

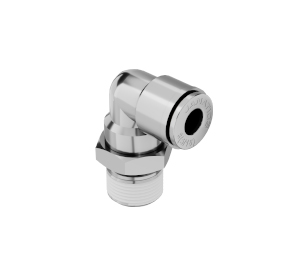

4) WM5 Series - With Stainless Steel housing and Stainless Steel collet cap

• Male Elbow (G1/8, G1/4, G3/8, G1/2)
