AC Servo Systems

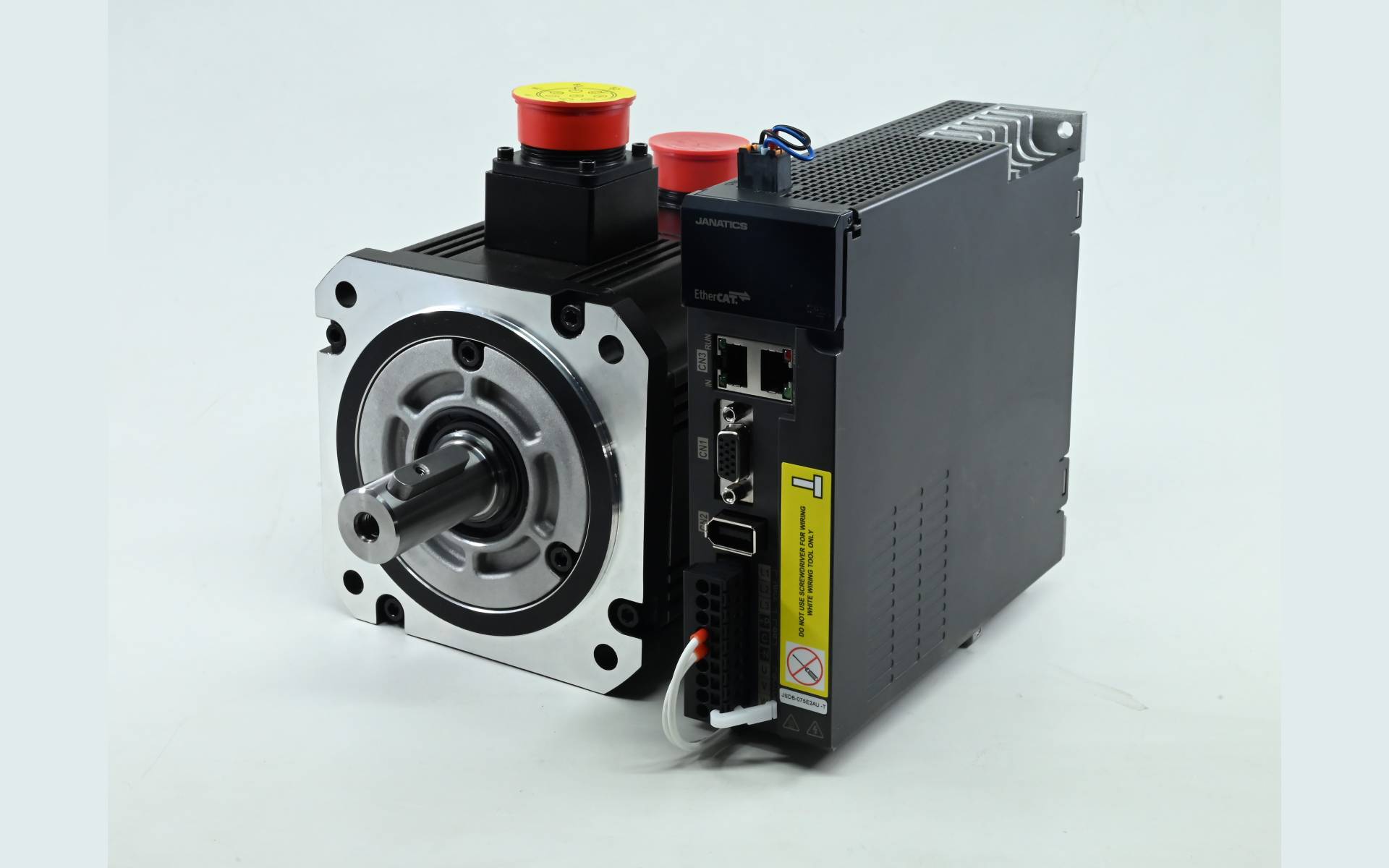

E2U Series - Ether CAT

To meet the requirements of general-purpose requirements and enhance the competitive advantage in the industrial automation market, Janatics is pleased to introduce & launch the new high-performance and cost-effective E2U series servo motors and drives into the market.

Types :

  • Steady performance at low-speed enhances machining quality

  • Keeps motor's position during power shortage

  • Speed Response is 2kHz

  • Available in Optical type with both Incremental & Absolute encoder models

E2U Series - Ether CAT 100W to 1kW

  • Technical Specifications
  • Features
  • Gearbox
  • Applications
  • Success Cases
  • Downloads
S.NO PRODUCT / MODEL 100W 200W 400W 750W 1kW
1 OPERATING VOLTAGE (in V) 200V - 240V AC, Single phase
2 CURRENT (RATED / MAX) (in A) 0.85 / 2.7 1.7 / 5.2 2.8 / 9 5.8 / 18.5 Low: 5.5 / 18.2
Medium: 5.8 / 17.4
3 TORQUE (RATED / MAX) (in Nm) 0.3 / 0.96 0.6 / 1.92 1.3 / 3.81 2.4 / 7.2 Low: 3.2 / 9.5
Medium: 4.8 / 14.4
4 SPEED (RATED / MAX) (in rpm) 3000 / 6000 3000 / 6000 3000 / 6000 3000 / 6000 Low: 3000 / 5000
Medium: 2000 / 3500
5 ENCODER RESOLUTION 22 bit
6 COMMUNICATION TYPE Ether CAT Type
7 CONTROL MODE Position control, Speed control & Torque control
8 INERTIA Low Low & Medium
9 BRAKE MODEL With brake & without brake
10 ERROR EXCESSIVE ± 3 rotations
11 Gearbox Planetary gearbox available with various ratios like 1:3,4,5,7,8,10
OUTSTANDING SPEED RESPONSE PERFORMANCE
DISTURBANCE & BACKLASH COMPENSATION
ONE TOUCH TUNING
REDUCE RESONANCE & VIBRATION

  • Electronic CAM for printing, packing and labelling machines

  • Full closed loop control

  • Safe Torque Off (STO) Function

  • Motor diversification & performance enhancement

  • Graphical software interface to set up functions and parameters, reducing setting time and failure

Gearbox Features :

  • Low Backlash

  • Available Ratios 1:3,4,5,7,8,10

  • Gearbox series: planetary gearbox & right-angle gearbox

  • Lifetime lubrication

  • Universal mounting positions

  • Protection class IP64

  • Easiest mounting of motor through flexible flange system

Machine tool, Wood carving machine, Pick & place process, Electronics assembly / inspection machine, Industrial robot, Packaging & labelling machine, semiconductor machine and textile machine

  • Electronics Assembly

  • Printing & Packaging Machines

  • Robotics

  • Special Purpose Machines

  • Wood Carving Machines
