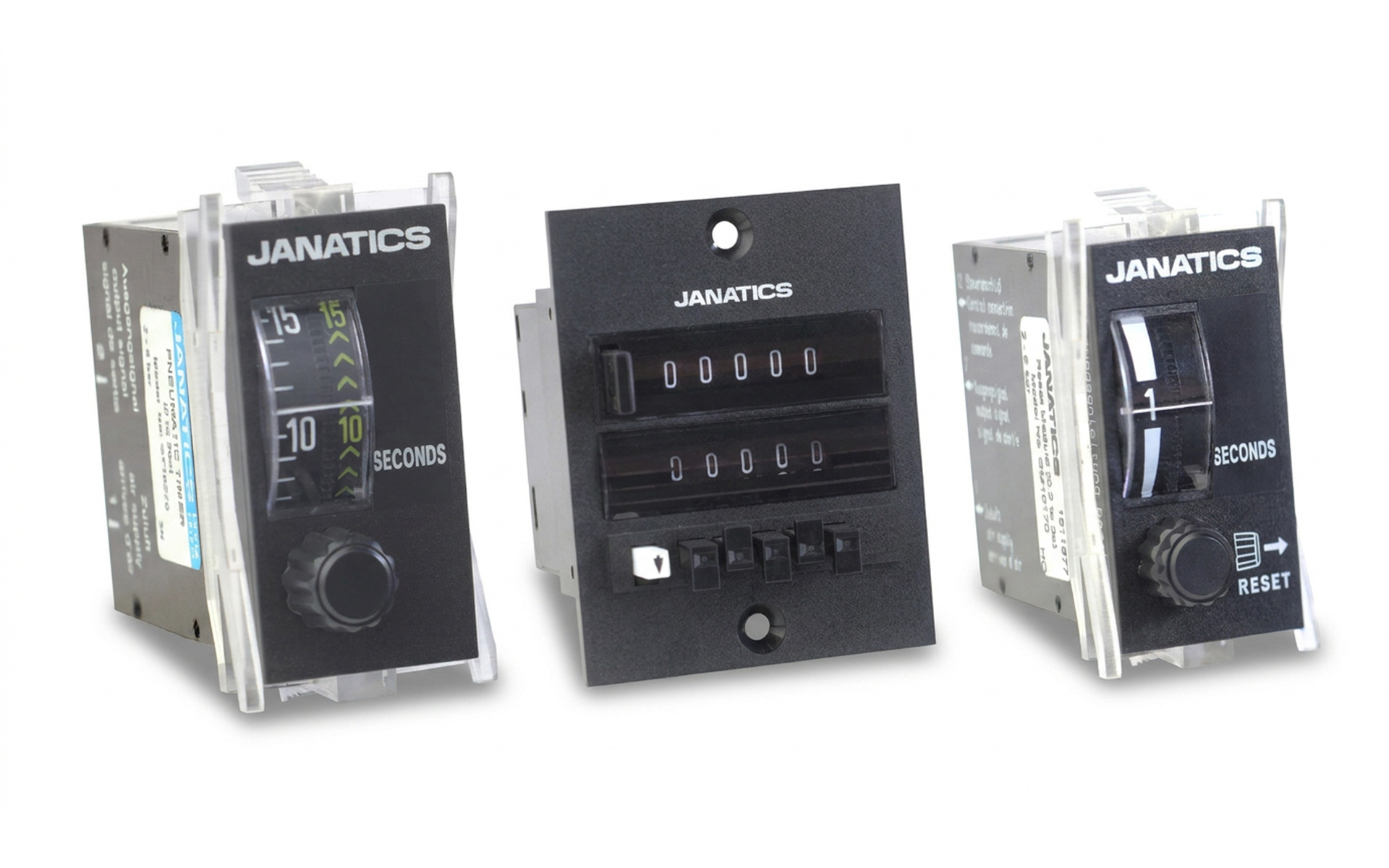

GT-Pneumatic Timer

Janatics Pneumatic Timer is a device that creates a timed pneumatic output. Pressure Independent. Panel mounted. Provision for DIN rail mounting. Stationary Preset Value. The time can be set from point 200 milli seconds to 300 seconds. 4 Ranges available.
Available Port Size: Metric - M5

GM-Pneumatic Reset Module

Janatics Pneumatic Reset Module is a small pneumatic control module used to RESET Pneumatic timers or Sequencing modules. It can be RESET manually by pulling the setting knob. Output signal of adjustable length 0.2 – 2 sec. Panel Mounted. Provision for DIN rail mounting. Stationary Preset Value.
Available Port Size: Metric - M5

GC-Pneumatic Reset Counter

Janatics Pneumatic Preset Counter is a pneumatic device that counts pneumatic pulses and displays the count on a mechanical dial. Counters have Three or Five-digit displays and counting upwards incoming signals are added. The counter can be reset by manual also. Continuously visible PRESET. Integrated pneumatic RESET. Convenient button setting. Hand or pneumatic RESET is available.
Available Port Size: Metric - M5
