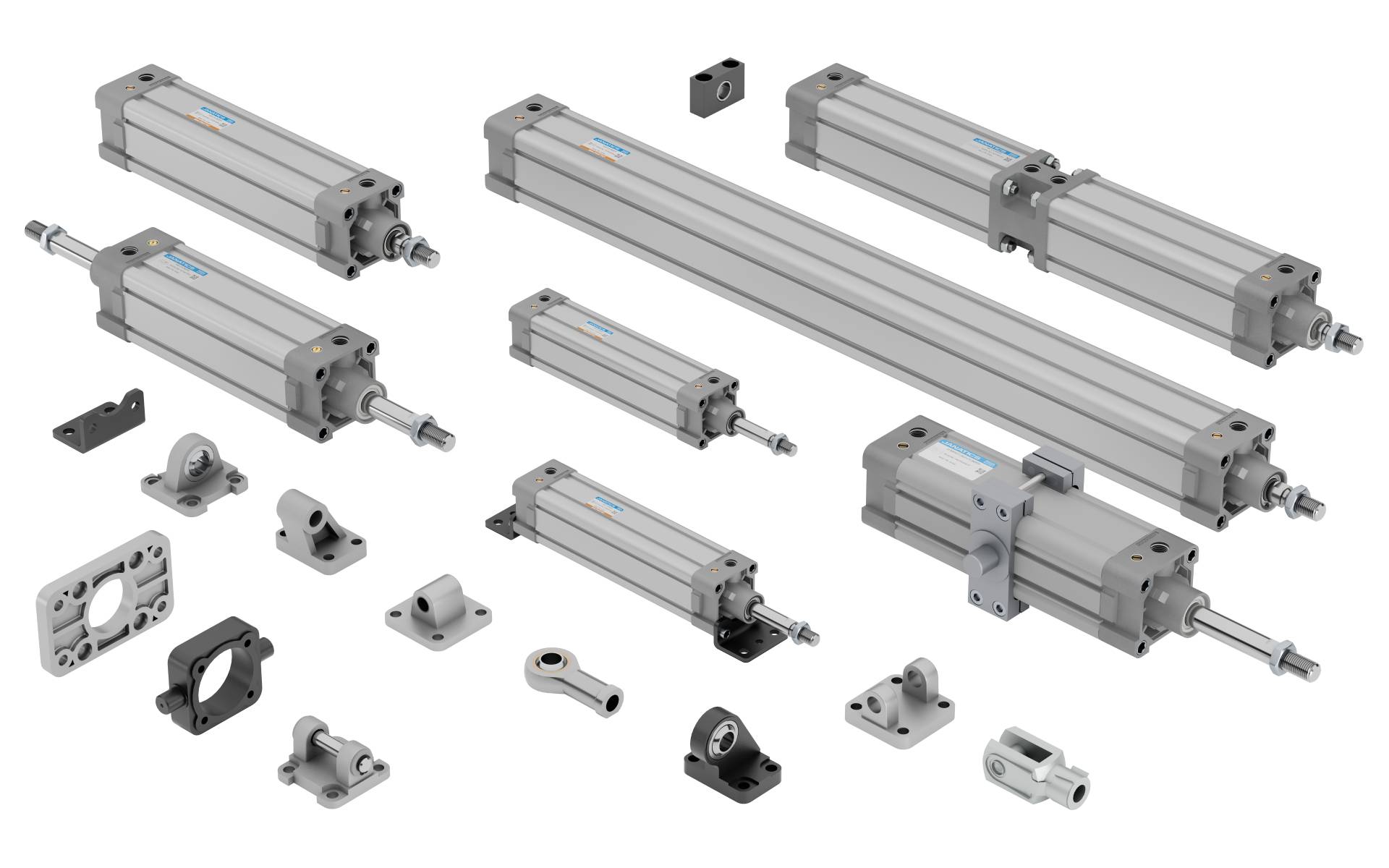

Janatics Square profile cylinder / Actuator, Cylinder barrel is (outer body) shaped with flat square sides, instead of common round profile. Pneumatic Square profile cylinders are provided with cushion pad at both end covers, to avoid forceful hitting of piston on the end cover. Addition to that Square profile cylinders are provided with cushion adjustment at both end covers. These cylinders serve the same purpose as Tie Rod cylinders, but offer different advantages such as easier mounting, increased stability, Elegant Appearance and ability to integrate DIN guide rails. Model is as per ISO 15552 / VDMA 24562. Magnetic and Non-Magnetic versions are available. Self-mounting, Varieties of mountings and Accessories available for mounting the cylinder as per requirement.

The following types are available

• Double Acting

• Single Acting

• Double end Double Acting

• Tandem Cylinder

• Non-Rotating

• Hollow Piston Rod

• Low Friction
