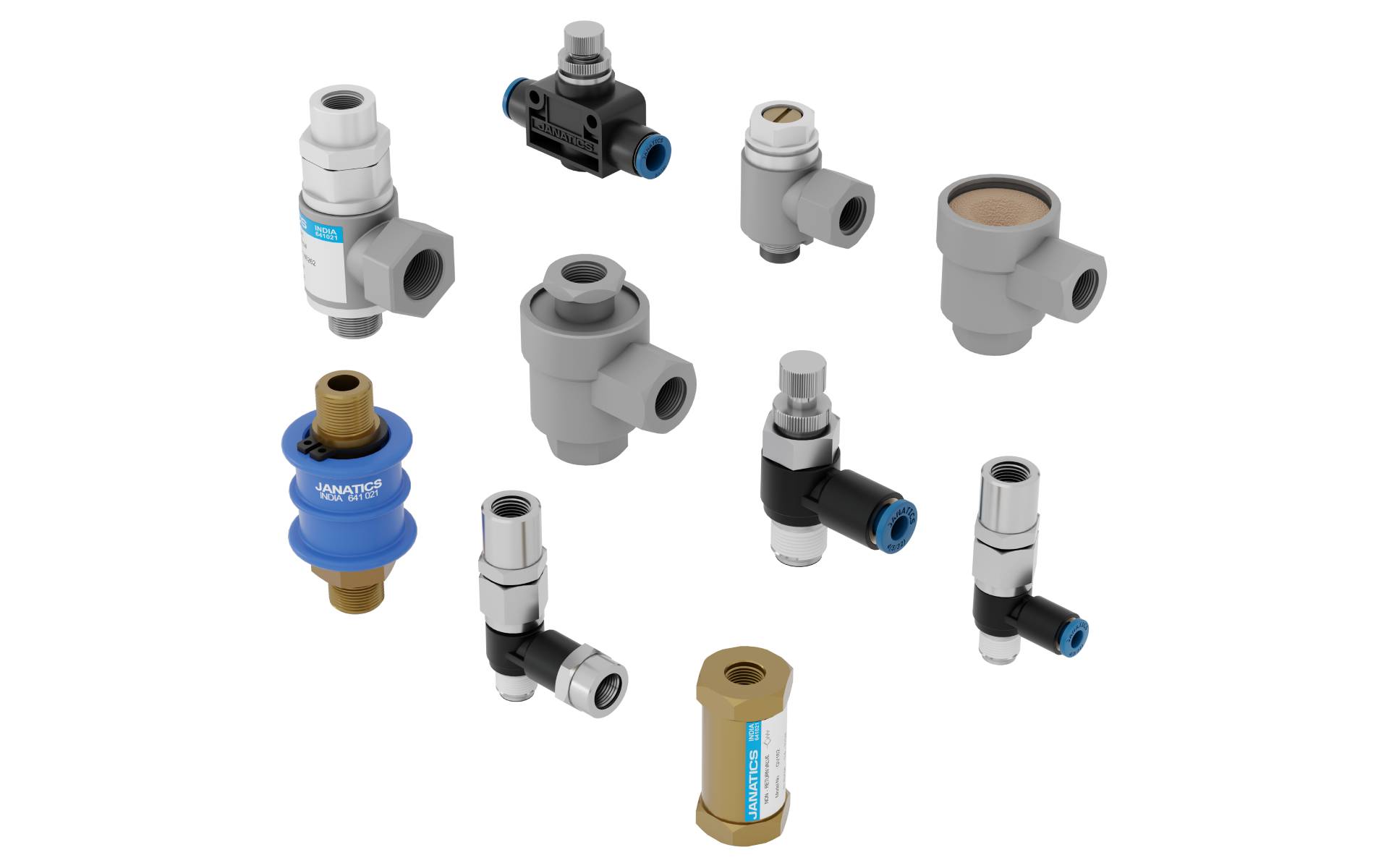

Janatics airline valves are used in the pneumatic systems to control direct, regulate the flow of pressurised air. A wide range of products used as control elements. They are available in various types and sizes.

Flow Control Valve :

• Elbow type - Plastic housing, brass needle assembly
  • Supply Control (GR110)
  • Exhaust Control (GR510)

• Elbow type - Metal housing
  • Supply Control (GR113)
  • Exhaust Control (GR513)

• In line Type – Plastic Housing (GR011, GR014(Fine flow))
  The valve can be fitted inline for supply control or exhaust control by reversing the product.

Quick Exhaust Valve :

• Silencer Type (GQ01)

• Plug Type (GQ02)

Pilot Operated Non-Return Valve :

• Plastic housing with female or tube type with male thread (GV21)

• Metal housing with female type with male thread – Swivel type (GV21M)

Inline Slide Valve (GS1) :

• Sleeve type

Non-Return Valve (GV1) :

• Inline type

AND Valve (GA0) :

• AND Valve delivers air when both inputs are provided with air signal. The lower pressure is connected to the outlet.

OR Valve (GB0) :

• OR Valve delivers air when both inputs are provided with air signal. The higher pressure is connected to the outlet.

Pneumatic Present Counter (GC1) :

• Button type & 5-digit display.

Pneumatic Reset Module (GM1) :

• Panel mounted provision for DIN rail mounting.

Pneumatic Timer (GT1) :

• Panel mounted provision for DIN rail mounting.
