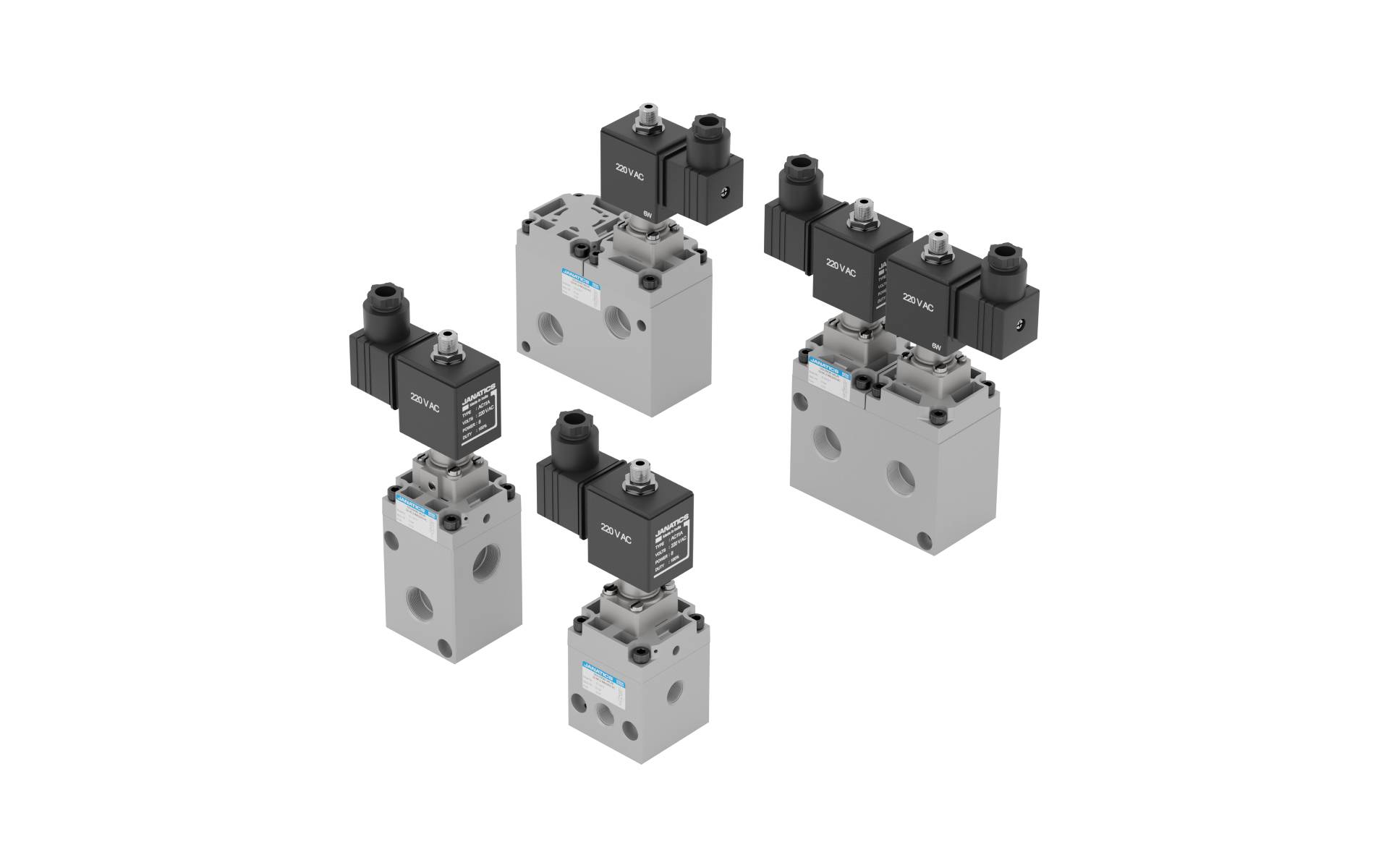

Janatics EL1 & EL2 Series, Diaphragm operated poppet type valves consisting of main valve with poppet construction and pilot valve operates the diaphragm for direction change. We have four types of valves.

• 3/2 NO

• 3/2 NC

• 5/2 Single solenoid

• 5/2 Double solenoid.

Available Sizes: G1/4 & G1/2 All the solenoid operated valves have coil with 32mm width.

• Standard Coil - Recommended Coil Voltages :

AC : 24, 48, 110, 220V.
DC : 12, 24, 48, 110V.

DP1 Series:

Janatics DP1 Series, Diaphragm operated poppet type valves consisting of main valve with poppet construction and pilot valve operates the diaphragm for direction change. The overall size is smaller. We have three types of valves.

• 3/2 NO

• 3/2 NC

• 5/2 Single solenoid

Available Size: G1/4 All the solenoid operated valves have coil with 22mm width.

• Standard Coil - Recommended Coil Voltages :

AC : 24, 48, 110, 220V.
DC : 12, 24, 48, 110V.
EL Series for Operating the solenoid valve, “Push Turn to lock” Manual Operator provided. For DP1 Series for Operating the solenoid valve “Push Type” Manual Operator provided.
