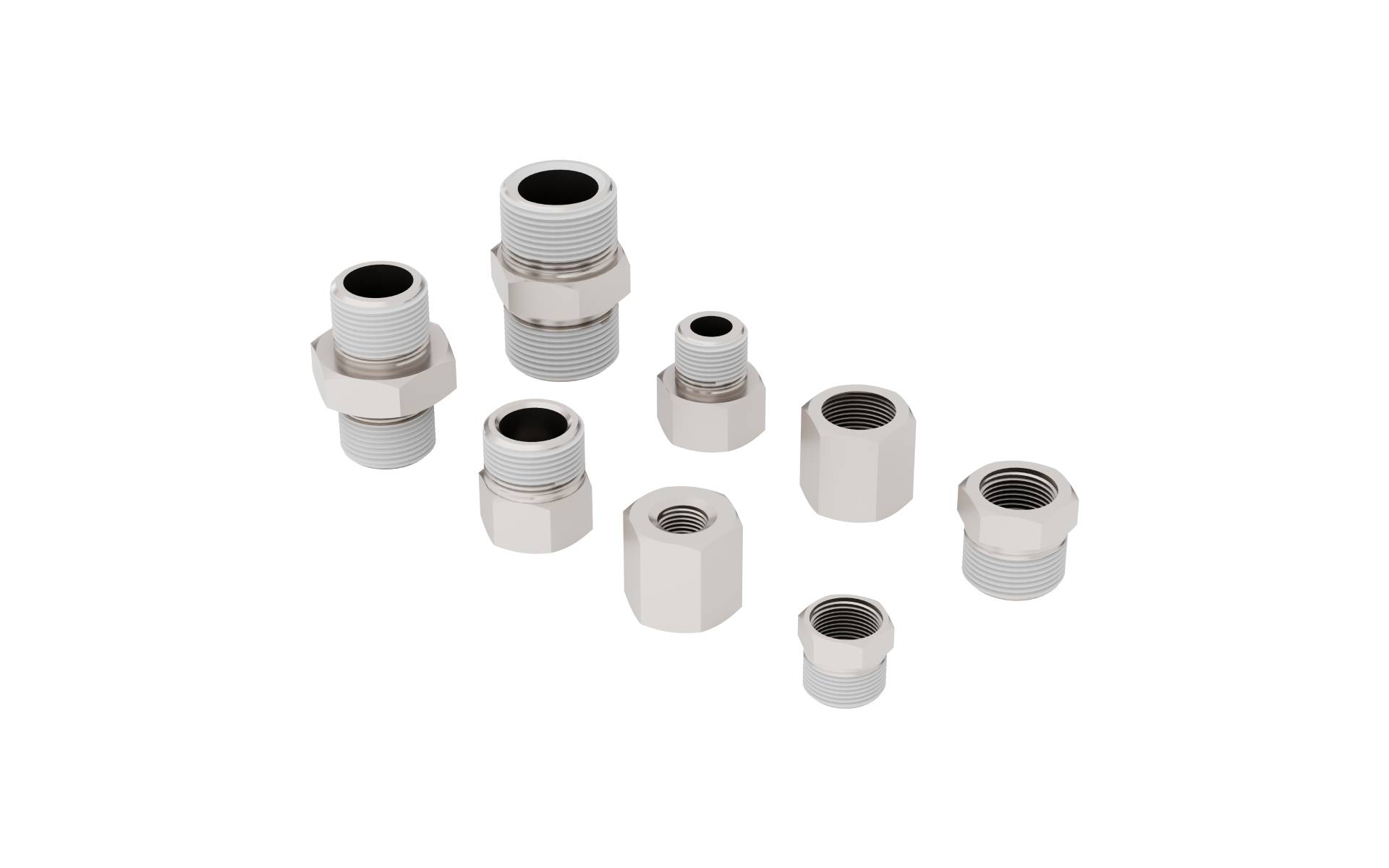

Janatics Nipples are recommended for connecting the port thread with different sizes, with the pneumatic elements and fittings. Without disturbing the Cylinder, valve etc., the nipple can be fitted and removed easily. These nipples are tightened with leak proof function with the matting thread. The nipples are manufactured with a Nickel-plated brass body construction for durability and long service life in industrial applications. These are used in the air line where the matting thread requirement is higher or lower. These Nipples supports for servicing the fitting easily without disturbing the pressure line. Nipples have Male (R) taper threads with thread sealant coatings and male parallel threads with sealing washer.

This fitting is available in the following types: WN Series

• Male X Male Nipple
  Available Sizes: (M5 (metric), R1/8, R1/4, R3/8, R1/2, R3/4, R1 – on both sides either equal size or smaller or bigger according to the requirement)

• Female X Male Nipple
  Available Sizes (Male Thread): (M5 (metric), R1/8, R1/4, R3/8, R1/2, R3/4 – on one side, smaller or bigger according to the requirement)
  Available Sizes (Female Thread): (M5 (metric), G1/8, G1/4, G3/8, G1/2, G3/4 – on one side, smaller or bigger according to the requirement)

• Female X Female Nipple
  Available Sizes (Female Thread): (M5 (metric), G1/8, G1/4, G3/8, G1/2 – on both sides either equal size or smaller according to the requirement)
