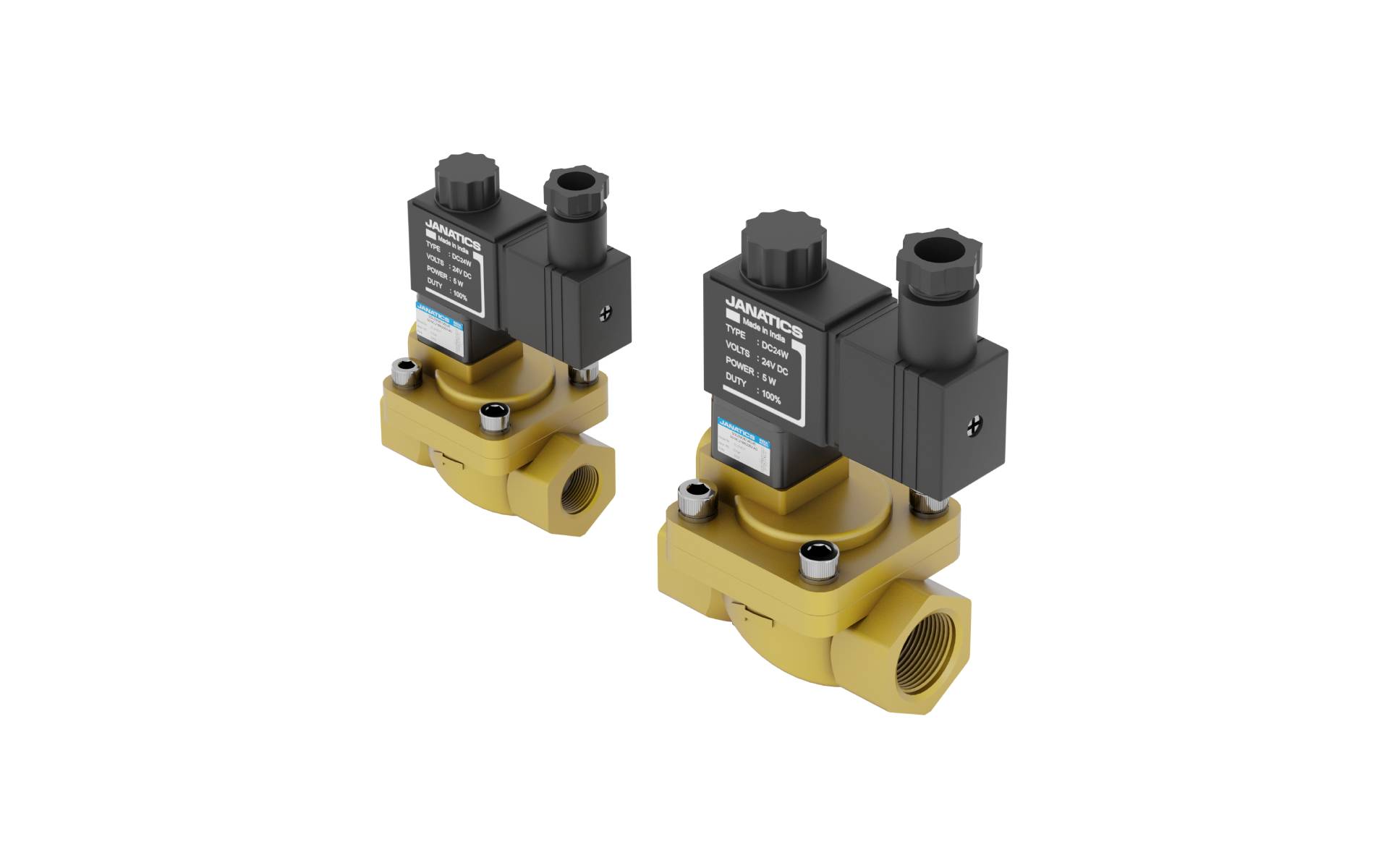

Solenoid operated valve – DMN Series

Janatics DMN Series Valve is a 2/2 Normally Closed, internal pilot, Diaphragm operated Poppet seat type Solenoid operated valve. Available Body materials Brass and Stainless Steel. Recommended for compressed air, water and Inert gas. Available Size – G1/4, G3/8, G1/2, G3/4, G1 For DMN Series Products for Operating the solenoid valve, Push Type Manual Operator provided. All the solenoid operated valves have coil with 22mm width.

• Standard Coil - Recommended Coil Voltages :

AC : 24, 48, 110, 220V.
DC : 12, 24, 48, 110V.

Solenoid operated valve – DMH Series

Janatics DMH Series Valve is a 2/2 Normally Closed, Internal pilot, Diaphragm operated Poppet seat type Solenoid operated valve. Available Body material Brass. Recommended for Water and Hot water. Available Size: G1/2
All the solenoid operated valves have coil with 32mm width.

• Standard Coil - Recommended Coil Voltages :

AC : 24, 48, 110, 220V.
DC: 12, 24, 48, 110V.
For Mounting DMN and DMH Series valve L Bracket recommended.
