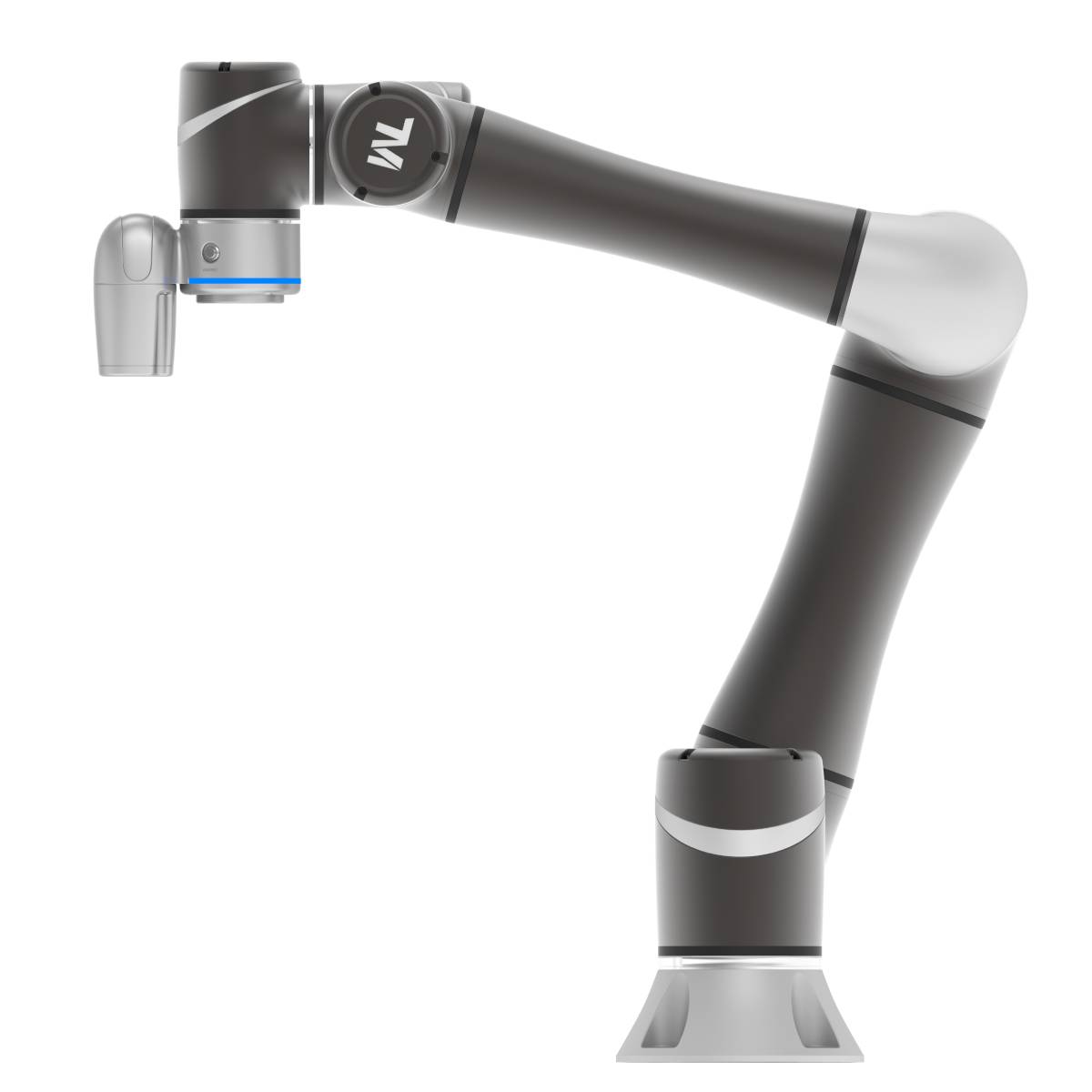

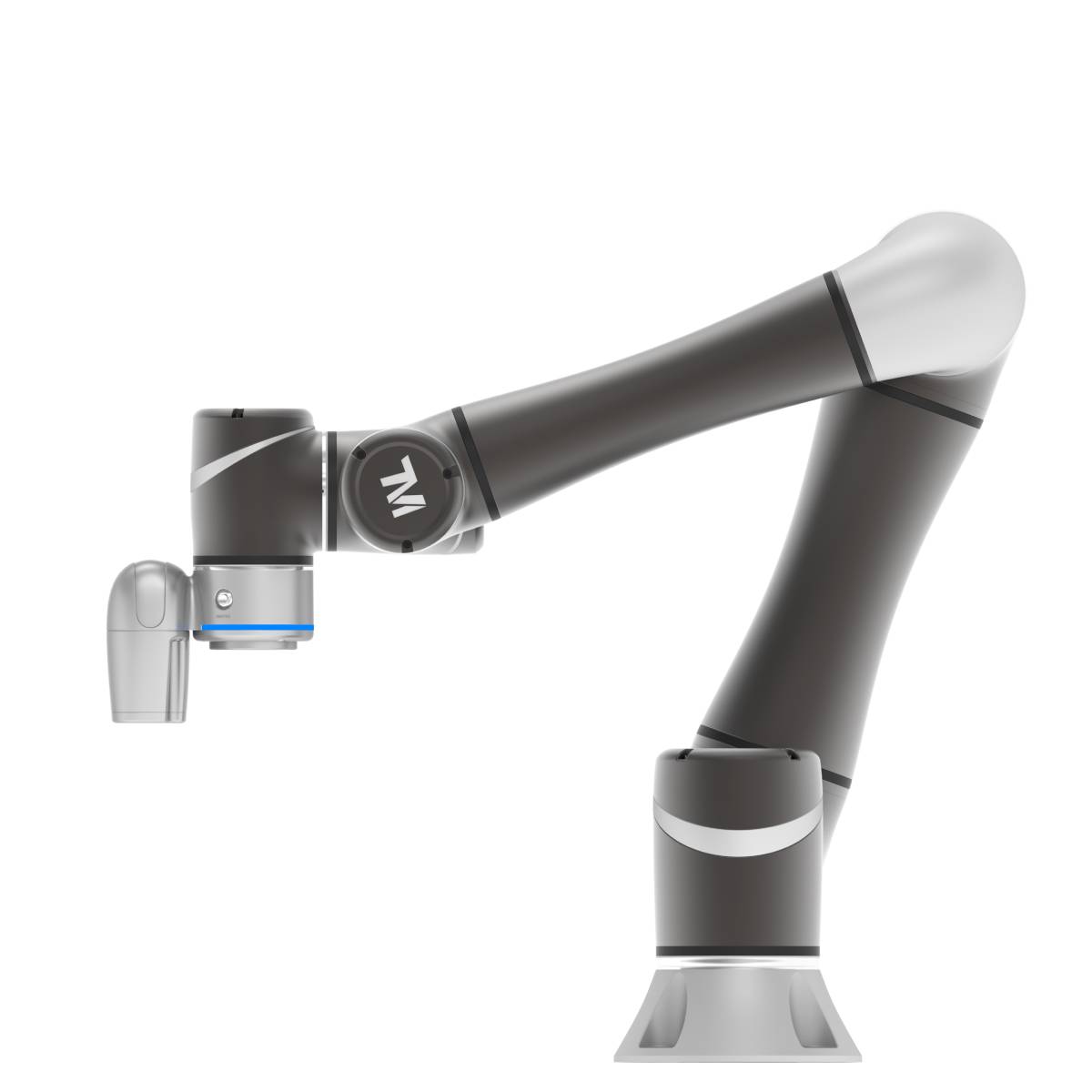

The TM5-900 collaborative robot is an intelligent automation solution designed for applications that demand extended reach, high precision, and flexible operation. Featuring an integrated vision system, the TM5-900 enables accurate positioning, inspection, and handling tasks in dynamic production environments.
Built for safe human–robot collaboration, the TM5-900 can operate alongside workers within the same workspace without compromising productivity or safety. Its versatility and precision make it an ideal choice for manufacturers across India looking to improve efficiency while maintaining consistent quality standards.
As the authorised distributor of Techman collaborative robots in India, Janatics offers complete support for deployment, integration, and lifecycle service.

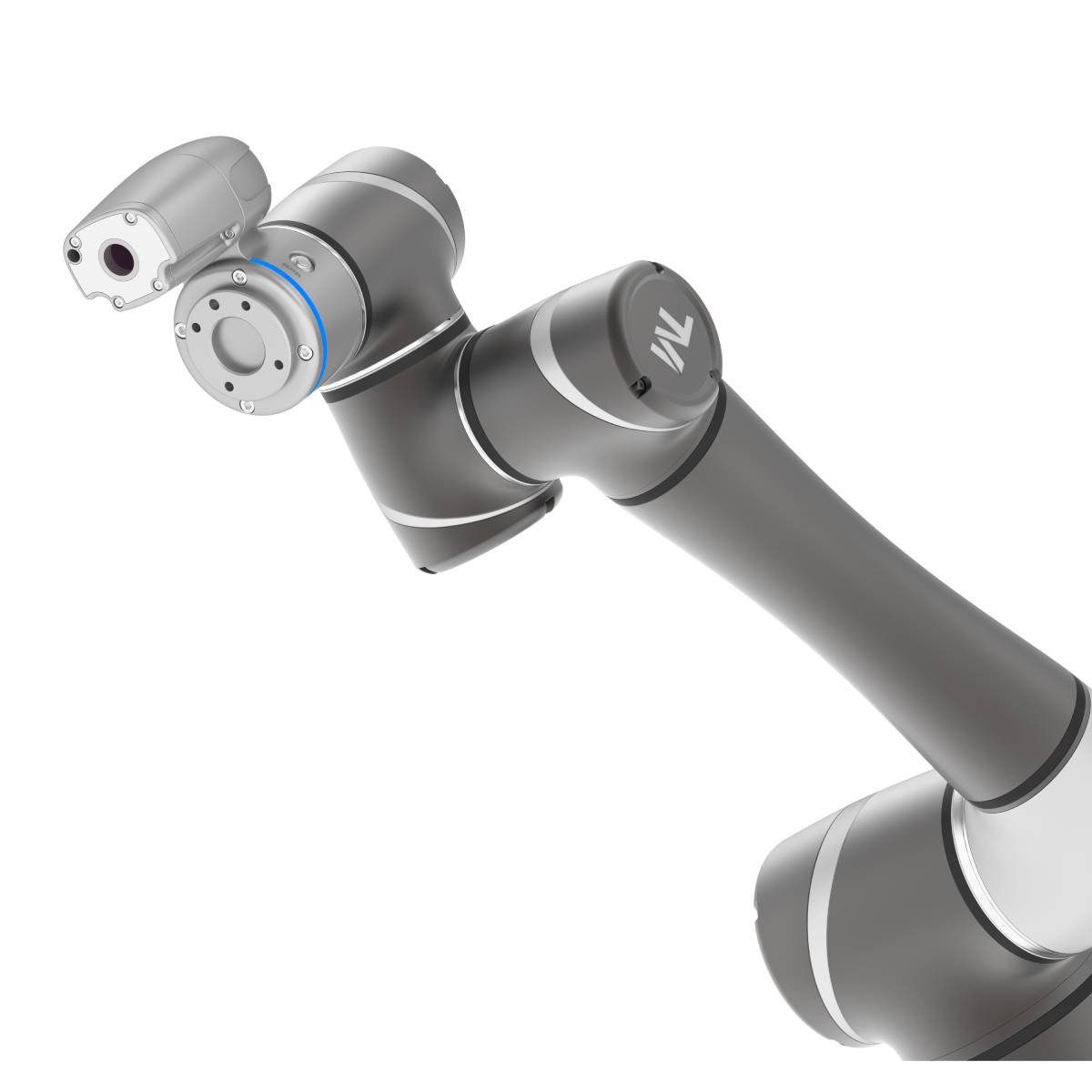

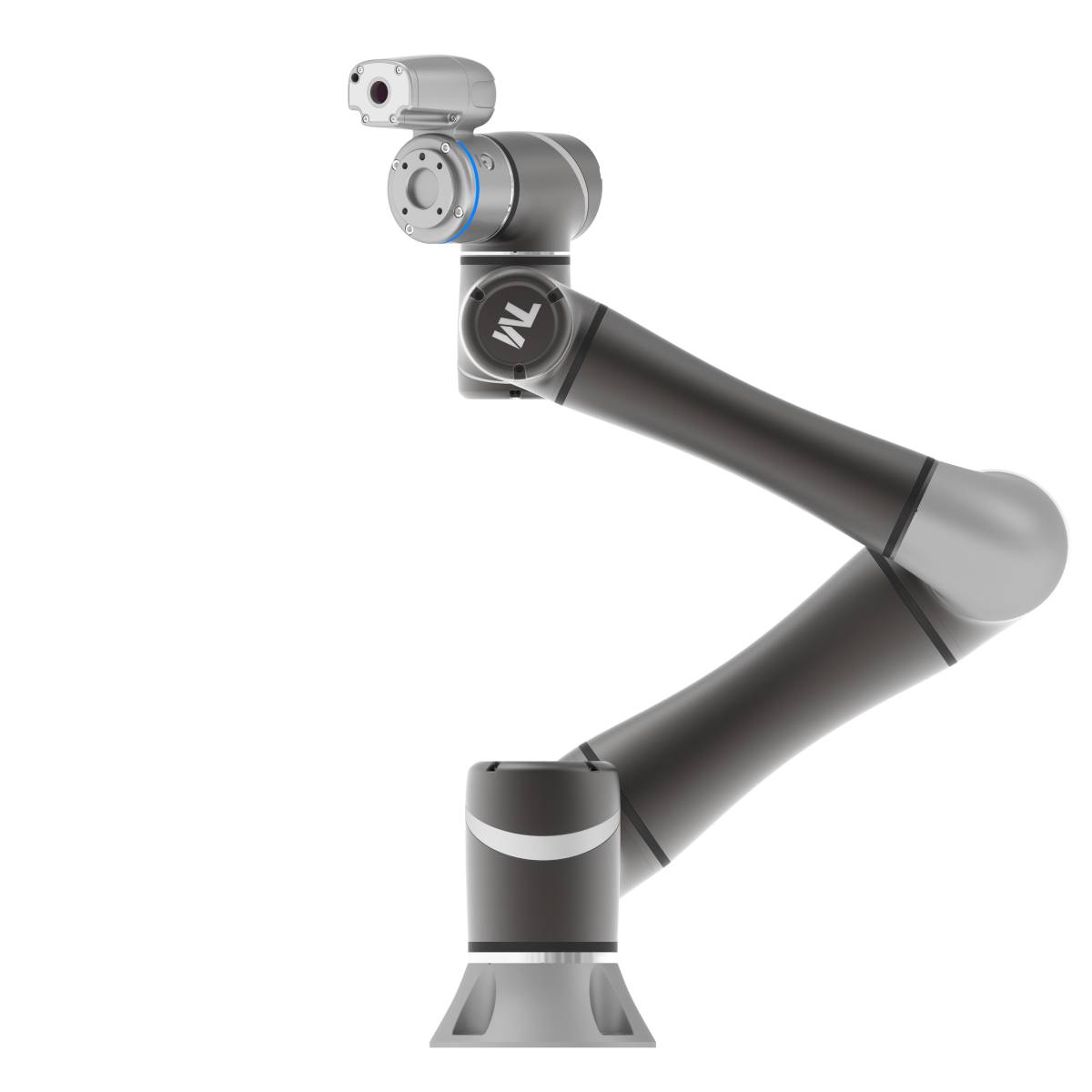

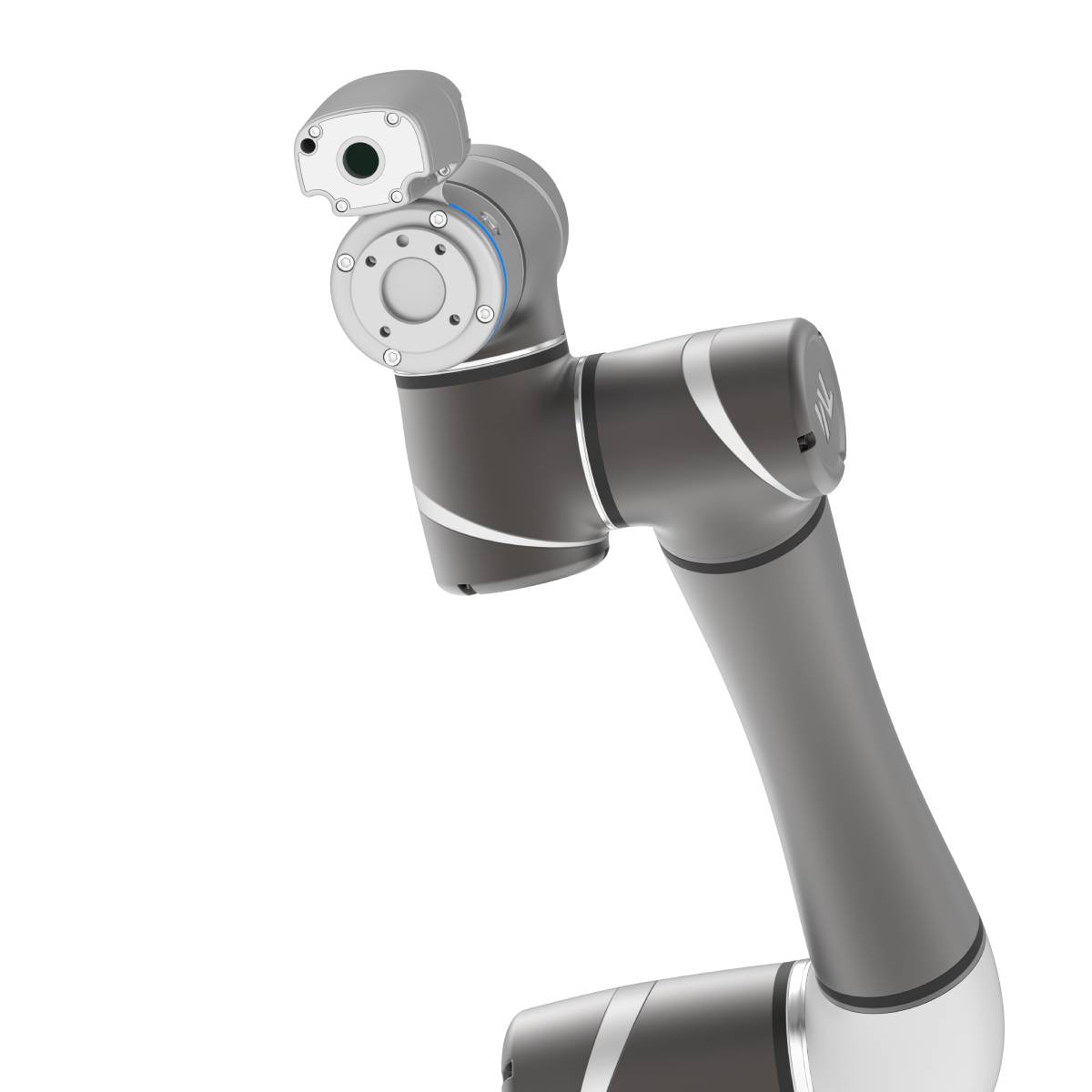

The built-in vision system allows the TM5-900 to identify parts, adjust positions, and perform inspection tasks without external sensors. This simplifies system design and improves operational flexibility.
With a longer reach compared to compact models, the TM5-900 supports a wider working envelope while maintaining excellent accuracy, making it suitable for multi-station operations
Advanced safety functions enable close interaction between operators and the cobot. This allows flexible production layouts without the need for safety cages in most applications.
The intuitive programming interface allows quick task setup and easy reconfiguration, enabling faster commissioning and reduced downtime.
The TM5-900 delivers consistent performance in applications requiring precision, repeatability, and adaptability, supporting continuous manufacturing operations.
The TM5-900 collaborative robot is widely used in precision-driven industrial applications, including:
Assembly automation
Pick and place operations
Vision-based inspection and quality control
Machine loading and unloading
Packaging and labeling
Material handling
Electronics and EMS
Automotive and auto components
Food and beverage processing
Electrical and electronics manufacturing
Consumer goods
| Parameter | Specification |
|---|---|
| Model | TM5-900 |
| Weight (kg) | 22.6 |
| Maximum Payload (kg) | 4 |
| Power Source | AC |
| Power Supply | 100 to 240 VAC, 50/60 Hz or 22 - 60 VDC |
| Controller Weight (kg) | 13.5 |
| Reach (mm) | 946 |
| Mounting | Wall, Table, Ceiling |
| Average Speed (m/s) | 1.4 |
| Maximum Speed (m/s) | 4 |
| Range: Joint 1 | +/- 270° |
| Range: Joint 2 | +/- 180° |
| Range: Joint 3 | +/- 155° |
| Range: Joint 4 | +/- 180° |
| Range: Joint 5 | +/- 180° |
| Range: Joint 6 | +/- 270° |
| Speeds: Joint 1 | 180°/s |
| Speeds: Joint 2 | 180°/s |
| Speeds: Joint 3 | 180°/s |
| Speeds: Joint 4 | 225°/s |
| Speeds: Joint 5 | 225°/s |
| Speeds: Joint 6 | 225°/s |
| Repeatability (mm) | +/- 0.05 |
| Typical Power Consumption (watts) | 220 |
| IP Classification | IP54 (Robot Arm), IP32 (Control Box) |
| Cleanliness | ISO Class 3 |
| Operating Temperature & Humidity | 0 to 50°C, 85% max. (with no condensation) |
| Storage Temperature & Humidity | -20 to 60°C, 75% max. (with no condensation) |
| Operating & Storage Environment | No corrosive gases or exposure to water-soluble cutting oil |
| Motor Power Supply | 48 VDC |
| Robot Arm Cable Length | 3m / 12m |
| Control Box I/O Ports | Digital In: 16, Digital Out: 16, Analogue In: 2, Analogue Out: 1 |
| End Arm Tool I/O Ports | Digital In: 4, Digital Out: 4, Analogue In: 1, Analogue Out: 0 |
| I/O Interface | COM: 3, HDMI: 1, LAN: 3, USB 2.0: 4, USB 3.0: 2 |
| Communication | RS-232, Ethernet, Modbus TCP/RTU (master & slave) |
| Communication (Optional) | Optionally support specified network card of PROFINET, EtherNet/IP, EtherCAT, CC-Link |
| I/O Power Supply | 24 VDC 2.0 A (control box) / 24 VDC 1.5 A (tool) |
| Programming Environment | TMflow (flowchart based, Script based), TM Craft (development program) |
| Integrated Camera Available | 5M pixels, colour, 100mm working distance*(1) or without built-in vision |
| Certifications |
ISO 13849-1, ISO 10218-1, ISO/TS 15066 CE, SEMI S2 (optional) |
| AI Functions (Optional) | Classification, Object detection, Semantic Segmentation, Anomaly detection, Instance segmentation (External hardware required - AI server required)*(1) |
| Applications | Positioning, 1D/2D Barcode reading, OCR, Defect Detection, Measurement, Assembly check*(1) |
| Positioning Accuracy |
2D Positioning: 0.1 mm TM Landmark 3D positioning (the working point is located 100/200/300mm away from the landmark ): 0.10/ 0.20/ 0.33 mm*(1) |
| Eye in Hand (Build-in) | Auto-focused colour camera with 5M resolution, working distance 100mm - infinite*(1) |
| Eye in Hand (Optional) | Support maximum 2 external cameras either 2 GigE 2D camera or 1 X GigE 2D camera + 1 X 3D Camera*(1) |
| Note | *(1) The features mentioned are applicable only to the built-in vision cobot, and they also support the addition of an external camera integrated with the TM cobot |
