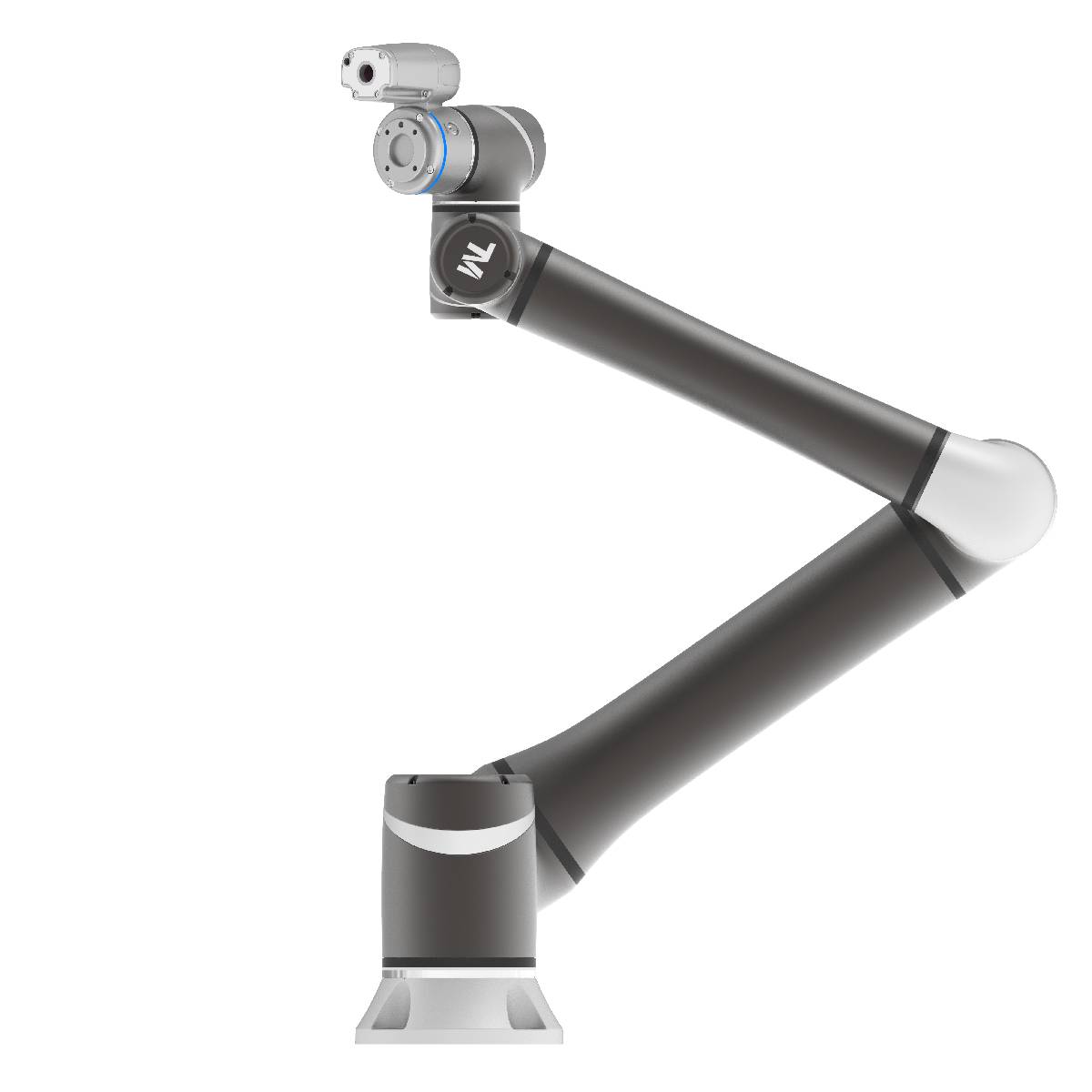

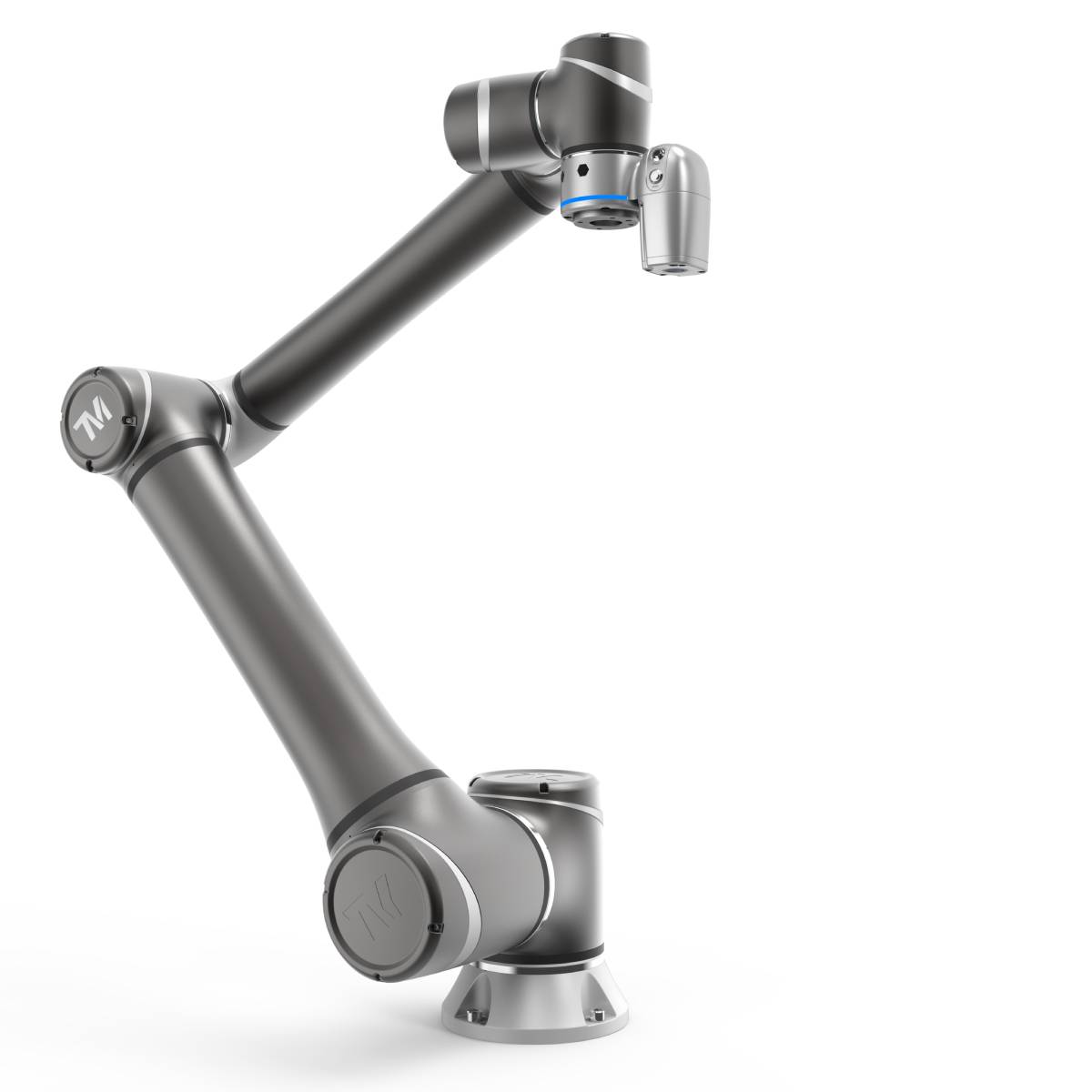

The TM12 collaborative robot is designed for applications requiring extended reach and higher payload capacity while maintaining industrial-grade precision. With a reach of 1300 mm and a 12 kg payload, the TM12 enables efficient automation of tasks that demand strength, accuracy, and flexibility.
Its collaborative safety features allow the TM12 to operate alongside human workers without the need for traditional safety fencing, making it ideal for space-constrained Indian manufacturing environments. The TM12 supports flexible deployment across multiple production processes, improving productivity and operational efficiency.
Janatics, as the authorized distributor of Techman collaborative robots in India, provides comprehensive support from system design to after-sales service.
The TM12 offers an extended operating envelope, allowing it to serve multiple workstations and handle larger components with ease.
With a 12 kg payload, the TM12 supports heavier tools and components, enabling automation of demanding industrial applications.
Advanced force-limiting and collision detection functions ensure safe interaction with human operators in shared workspaces.
The TM12 supports quick redeployment and easy reprogramming, making it suitable for evolving production requirements.
Designed for consistent accuracy and repeatability, the TM12 delivers reliable performance in continuous production environments.
Machine tending
Material handling
Assembly operations
Packaging and pallet preparation
Inspection and testing
Automotive and auto components
Electronics manufacturing
Industrial machinery
FMCG and packaging
General engineering
| Parameter | Specification |
|---|---|
| Model | TM12 |
| Weight (kg) | 32.8 |
| Maximum Payload (kg) | 12 |
| Power Source | AC |
| Power Supply | 100 to 240 VAC, 50/60 Hz or 22 - 60 VDC |
| Controller Weight (kg) | 13.8 |
| Reach (mm) | 1300 |
| Mounting | Wall, Table, Ceiling |
| Average Speed (m/s) | 1.3 |
| Maximum Speed (m/s) | 4 |
| Range: Joint 1 | +/- 270° |
| Range: Joint 2 | +/- 180° |
| Range: Joint 3 | +/- 166° |
| Range: Joint 4 | +/- 180° |
| Range: Joint 5 | +/- 180° |
| Range: Joint 6 | +/- 270° |
| Speeds: Joint 1 | 120°/s |
| Speeds: Joint 2 | 120°/s |
| Speeds: Joint 3 | 180°/s |
| Speeds: Joint 4 | 180°/s |
| Speeds: Joint 5 | 180°/s |
| Speeds: Joint 6 | 180°/s |
| Repeatability (mm) | +/- 0.1 |
| Typical Power Consumption (watts) | 300 |
| IP Classification | IP54 (Robot Arm), IP32 (Control Box) |
| Cleanliness | ISO Class 3 |
| Operating Temperature & Humidity | 0 to 50°C, 85% max. (with no condensation) |
| Storage Temperature & Humidity | -20 to 60°C, 75% max. (with no condensation) |
| Operating & Storage Environment | No corrosive gases or exposure to water-soluble cutting oil |
| Motor Power Supply | 48 VDC |
| Robot Arm Cable Length | 3m / 12m |
| Control Box I/O Ports | Digital In: 16, Digital Out: 16, Analogue In: 2, Analogue Out: 1 |
| End Arm Tool I/O Ports | Digital In: 4, Digital Out: 4, Analogue In: 1, Analogue Out: 0 |
| I/O Interface | COM: 3, HDMI: 1, LAN: 3, USB 2.0: 4, USB 3.0: 2 |
| Communication | RS-232, Ethernet, Modbus TCP/RTU (master & slave) |
| Communication (Optional) | Optionally support specified network card of PROFINET, EtherNet/IP, EtherCAT, CC-Link |
| I/O Power Supply | 24 VDC 2.0 A (control box) / 24 VDC 1.5 A (tool) |
| Programming Environment | TMflow (flowchart based, Script based), TM Craft (development program) |
| Integrated Camera Available | 5M pixels, colour, 100mm working distance*(1) or without built-in vision |
| Certifications |
ISO 13849-1, ISO 10218-1, ISO/TS 15066 CE, SEMI S2 (optional) |
| AI Functions (Optional) | Classification, Object detection, Semantic Segmentation, Anomaly detection, Instance segmentation (External hardware required - AI server required)*(1) |
| Applications | Positioning, 1D/2D Barcode reading, OCR, Defect Detection, Measurement, Assembly check*(1) |
| Positioning Accuracy |
2D Positioning: 0.1 mm TM Landmark 3D positioning (100/200/300mm away): 0.10 / 0.20 / 0.33 mm*(1) |
| Eye in Hand (Build-in) | Auto-focused colour camera with 5M resolution, working distance 100mm - infinite*(1) |
| Eye in Hand (Optional) | Support maximum 2 external cameras either 2 GigE 2D camera or 1 X GigE 2D camera + 1 X 3D Camera*(1) |
| Note | *(1) The features mentioned are applicable only to the built-in vision cobot, and they also support the addition of an external camera integrated with the TM cobot |
