| Parameter | Specification |
|---|---|

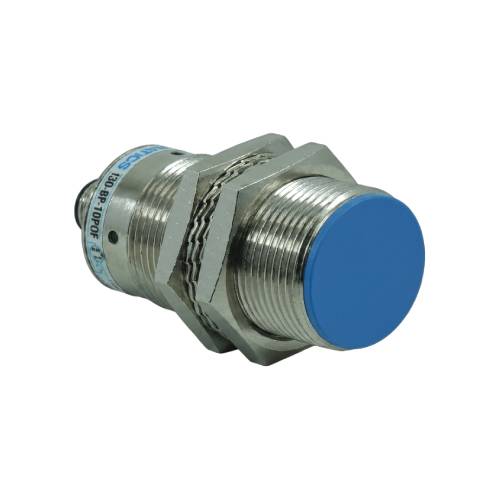

| Model | M30 |
| Sensing Distance - Sd(mm) |
Flush: 10 Non-Flush: 15 |
| Sensing Target (Iron) | 30x30x1 mm |
| Sensing Logic | PNP/NPN - NO/NC |
| Hysteresis | 10% of Sd |
| Operating Voltage | 10 - 30V DC |
| Residual Voltage | <1V |
| Voltage Drop | <2.2V |
| Current Consumption | < 15 mA |
| Operating Current | 200 mA |
| Operating Temperature | -25°C to +70°C |
| Switching Frequency |
Flush: 250 Hz Non-Flush: 125 Hz |
| Dielectric Strength | 1500VAC-50/60 Hz for 1 minute |
| Protection Circuit | Surge Protection, Reverse Polarity, Overcurrent Protection |
| Shock Test | 500m/s2 (50G) - X, Y, Z directions for 3 times |
| Vibration Test | 1mm amplitude at a frequency of 10-55 Hz in each of X, Y, Z directions for 2 Hrs |
| Protection Class | IP67 |
| Output Indicator | LED - RED |
| Housing | Housing-Nickel Plated Brass, Nuts-Nickel Plated Brass(2nos), Washer-Nickel Plated Iron(1no) |
| Sensing Face | ABS Plastic (PNP - Green, NPN - Blue) |
| Connection | Wire (Brown, Black, Blue) / M12 - 4pin Connector |
